Subwoofers

We know of no other speaker company that gives you the finish options and flexibility of placement with subwoofers as we do.   Companies that often offer finish options still only sell black subwoofers if you are in luck they may sell you silver as well.  With us the sky is the limit.   Match your subwoofer to your system, your home and your lifestyle.   If you can dream it we can build it.
Subwoofers
Custom Sub8

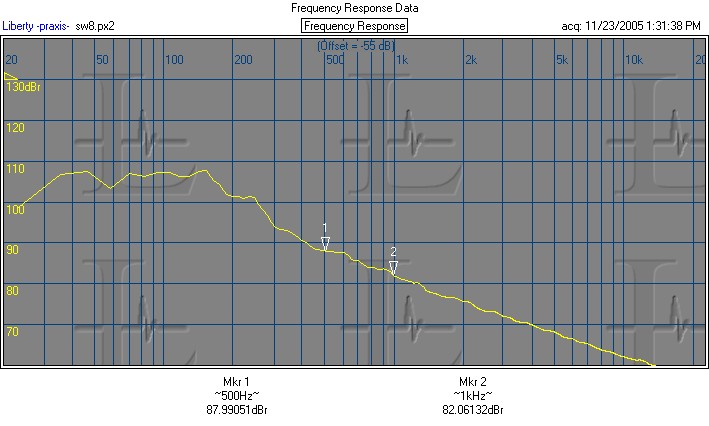

Graph of Sub8
The main difference between it and the Sub10 or the Sub12 is total SPL or volume
Sub 12
Pictured in stained Knotty Alder

  • High efficiency 12" Kevlar impregnated paper cone woofer
  • 4" Jantzen Danish made flared port.
  • Bolt in sub mounts.
  • Heavy duty spike system for clean bass, comes with rubber feet for spikes when used on tile or hardwood floors.

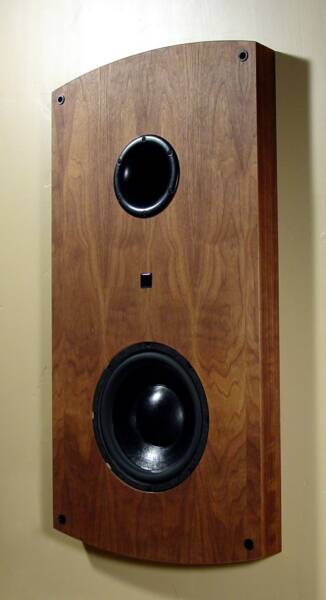

Sub 10i
Pictured in Dark Walnut

  • In-wall version of the Sub 10, this protrudes 1.5" from the wall
  • This model is passive and requires a separate amplifier

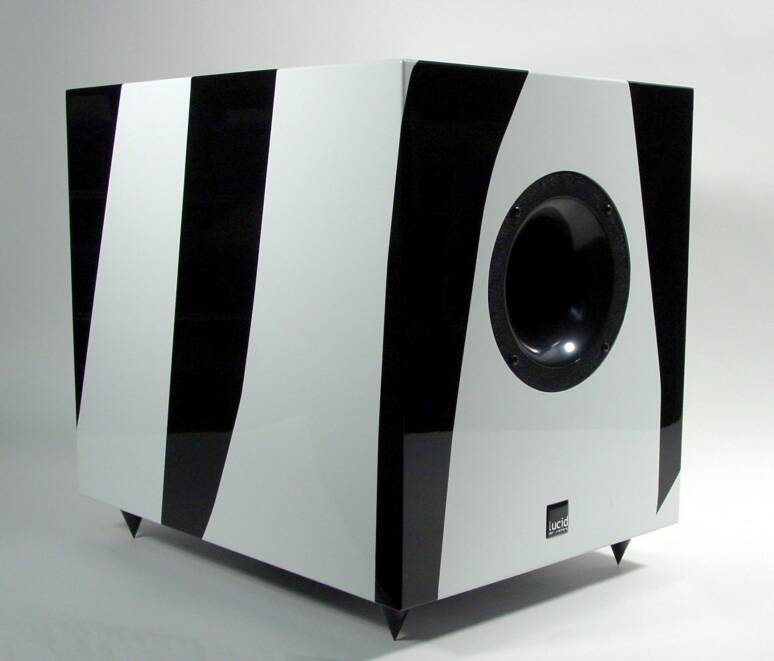

Sub 10
Pictured in custom zebra print automotive finish

  • High efficiancy 10" Kevlar impregnated paper cone woofer
  • 3" Jantzen Danish made flared port.
  • Bolt in sub mounts
  • Heavy duty spike system for clean bass, comes with rubber feet for spikes when used on tile or hardwood floors.

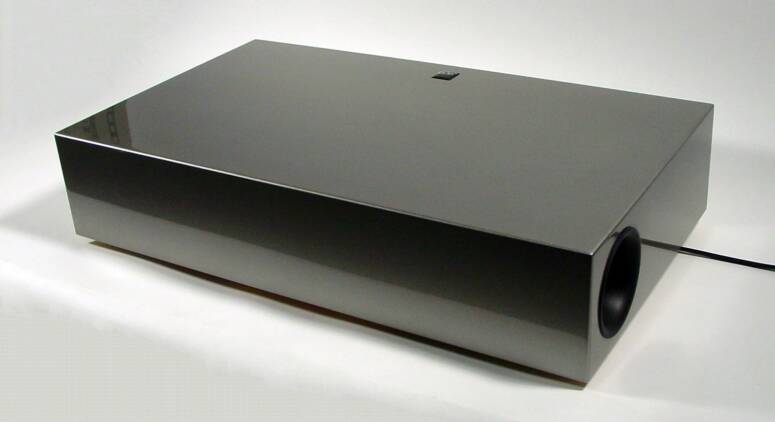

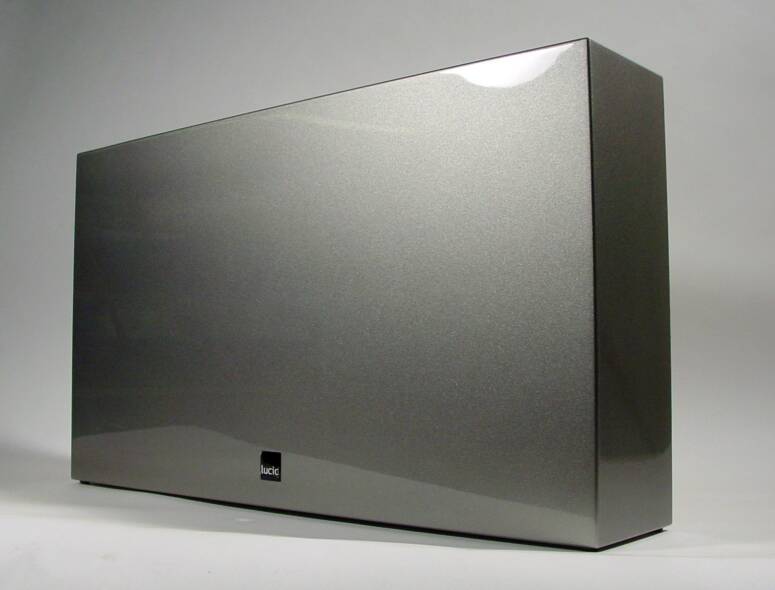

Sub 8w
Pictured in silver automotive finish

  • At only 5.75" thick this subwoofer is perfect for on wall mounting under flat screen televisions or lay it on the floor and slide it under a bed or couch.   When you need space but want great sound this is the subwoofer for you
  • Identical to Sub8 but designed for on wall applications

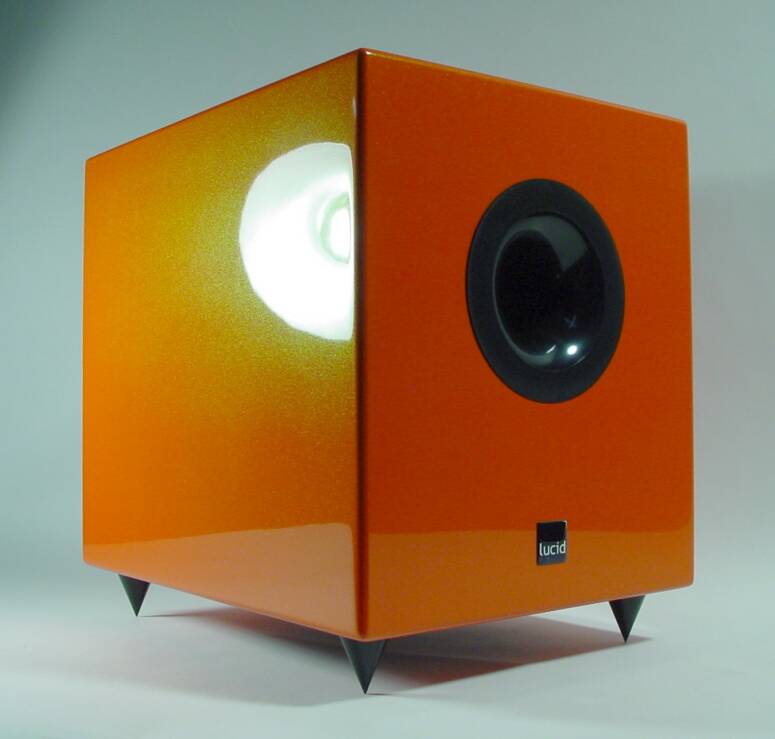

Sub 8.3
Pictured in custom O So Orange automotive finish

  • Same as Sub8 but adds a three way amplifier
  • 25 Watt x2 50 Watt x1 amp with RCA and 1/8" jack input for sound
  • Optional remote wired volume control available
  • Excellent for Ipod and computer systems, great companion to a pair of Proto 3b's.

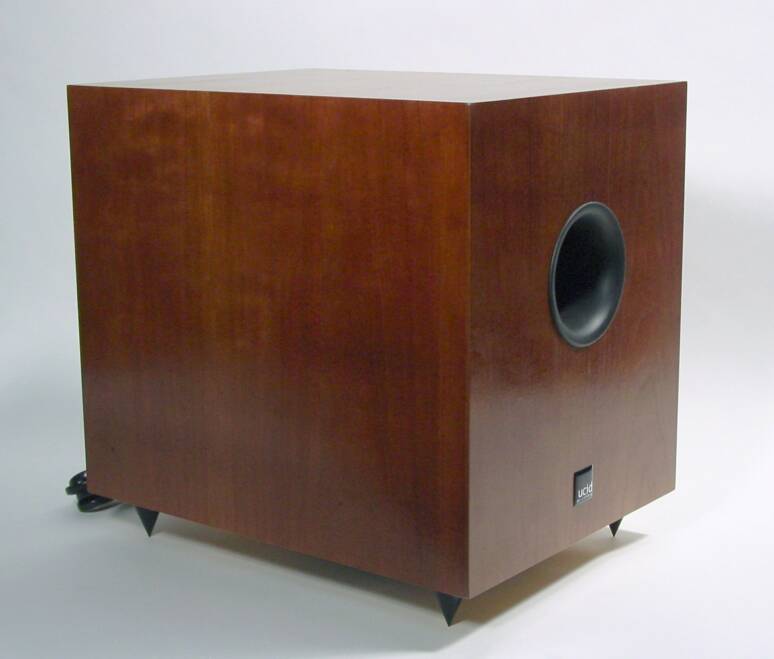

Sub 8
Pictured in stained Cherry

  • High efficiancy 8" Kevlar impregnated paper cone woofer.
  • Heavy duty spike system for clean bass, comes with rubber feet for spikes when used on tile or hardwood floors.
Subwoofer  Standard Features

  • Kevlar impregnated paper cones that are manufactured in the USA
  • .75" Ultra refined MDF construction
  • Powerful amplifiers coupled with efficient woofers give high output
  • Flared Ports made in Denmark
  • Matte Lacquer finish standard
Specialty Subwoofer Designs
Standard Subwoofer Designs

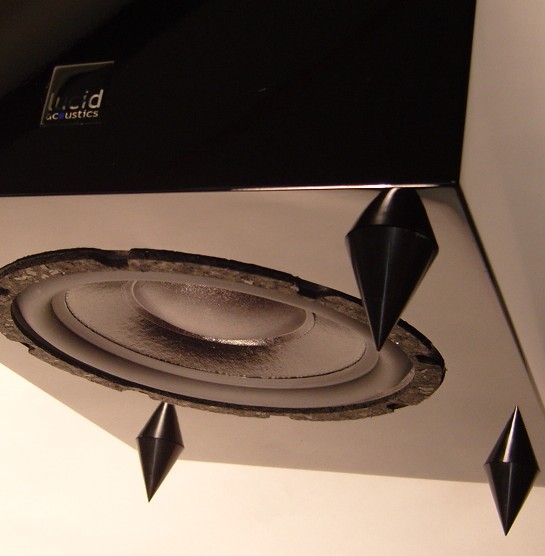

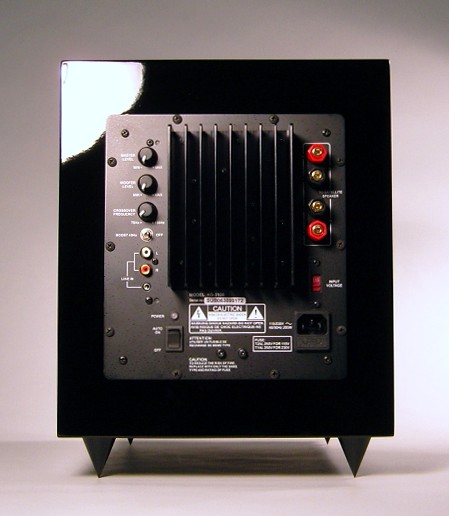

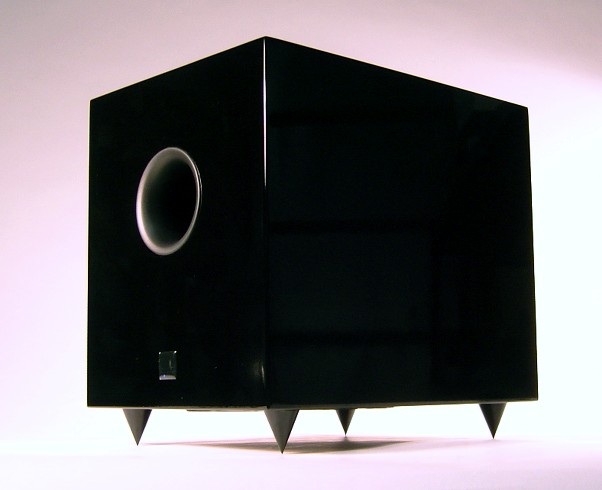

These are pictures of the Sub8.3 in Black Automotive finish.   The Sub8, Sub10, and Sub12 are all built in the same way.
Specifications
Sub10 (Mono 10" Sub-Woofer)
  • Frequency Response: 30hz - 150hz
  • Dimensions: 15.5" tall, 17" deep, 12.5" wide
  • Subwoofer Amplifier Power: 100 Watt RMS
  • Driver sizes: 10" Sub-Woofer
  • Shielded: NO
  • Weight: 42lbs

Sub 10i (In-wall 10" Sub-Woofer)
  • Frequency Response: 30hz - 150hz
  • Dimensions:32" tall, 5.5" deep, 18" wide
  • Subwoofer Amplifier Power: NO AMP
  • Driver sizes: 10" Sub-Woofer
  • Shielded: NO
  • Weight: 40lbs

Sub 12 (Mono 12" Sub-Woofer)
  • Frequency Response: 30hz - 150hz
  • Dimensions: 17" tall, 17" deep, 14" wide
  • Subwoofer Amplifier Power: 250 Watts RMS
  • Driver sizes: 12" Sub-Woofer
  • Shielded: NO
  • Weight: 52lbs
Sub8 (Mono 8" Sub-Woofer)
  • Frequency Response: 30hz - 150hz
  • Dimensions: 14" tall, 16" deep, 11" wide
  • Subwoofer Amplifier Power: 70 Watt RMS
  • Driver sizes: 8" Sub-Woofer
  • Shielded: NO
  • Weight: 27lbs

Sub 8w (On-wall 8" Sub-Woofer)
  • Frequency Response: 30hz - 150hz
  • Dimensions: 14" tall, 5.75" deep, 24" wide
  • Subwoofer Amplifier Power: 70 Watt RMS
  • Driver sizes: 8" Sub-Woofer
  • Shielded: NO
  • Weight: 29lbs

Sub 8.3 (Multimedia 8" Sub-Woofer)
  • Frequency Response: 30hz - 150hz
  • Dimensions: 14" tall, 16" deep, 11" wide
  • Subwoofer Amplifier Power: 50 Watt RMS for Sub, and 25 Watts RMS x 2 for a pair of satellite speakers
  • Driver sizes: 8" Sub-Woofer
  • Shielded: NO
  • Weight: 27lbs
